Expanded metal XG Styles





Expanded metal XG Styles

Types:  Heavy Type

Features:

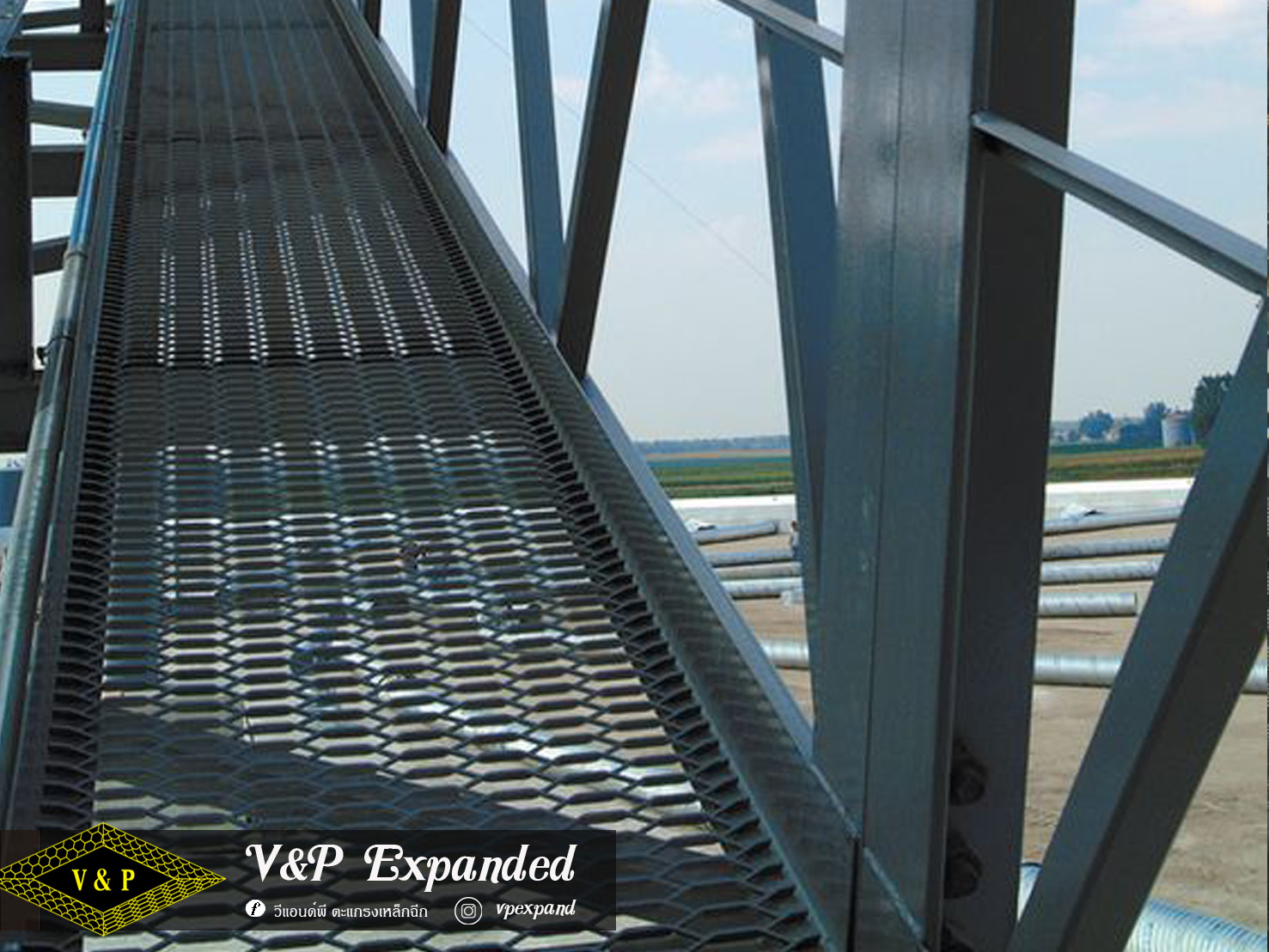

Expanded metal grating is the most practical and economical way to assure strength, safety, and a non-skid surface, .Expanded metal grating is ideal for use on plant runways, working platforms, and catwalks as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.




Specification

Weight

Short Way
Long Way

Per Sheet

of Dimond
of Dimond
Thickness
Width
4 feet x 8 feet

(SWD)
(LWD)
(T)
(W)
(LWM)(SWM)
XG-11
34 mm
( 1.339 " )
135.4 mm
( 5.331 " )
4.5 mm
( 0.177 " )
7.0 mm
( 0.276 " )
41 kg.
XG-12
34 mm
( 1.339 " )
135.4 mm
( 5.331 " )
6.0 mm
( 0.236 " )
7.0 mm
( 0.276 " )
55 kg.
XG-13
34 mm
( 1.339 " )
135.4 mm
( 5.331 " )
6.0 mm
( 0.236 " )
9.0 mm
( 0.354 " )
71 kg.




XG-21
36 mm
( 1.417 " )
101.6 mm
( 4.000 " )
4.5 mm
( 0.177 " )
7.0 mm
( 0.276 " )
36 kg.
XG-22
36 mm
( 1.417 " )
101.6 mm
( 4.000 " )
6.0 mm
( 0.236 " )
7.0 mm
( 0.276 " )
48 kg.
XG-23
36 mm
( 1.417 " )
101.6 mm
( 4.000 " )
6.0 mm
( 0.236 " )
9.0 mm
( 0.354 " )
67 kg.

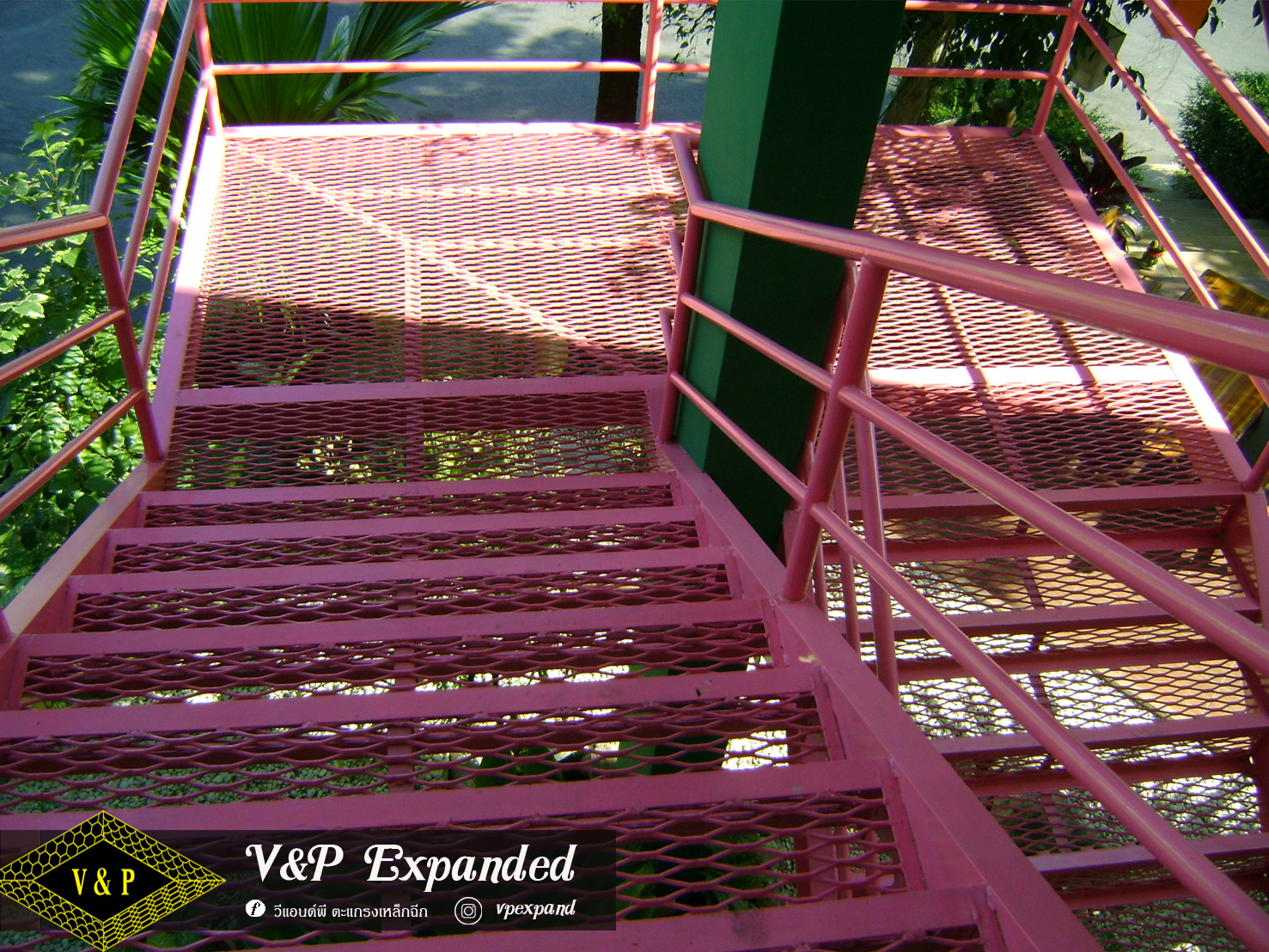

Application:

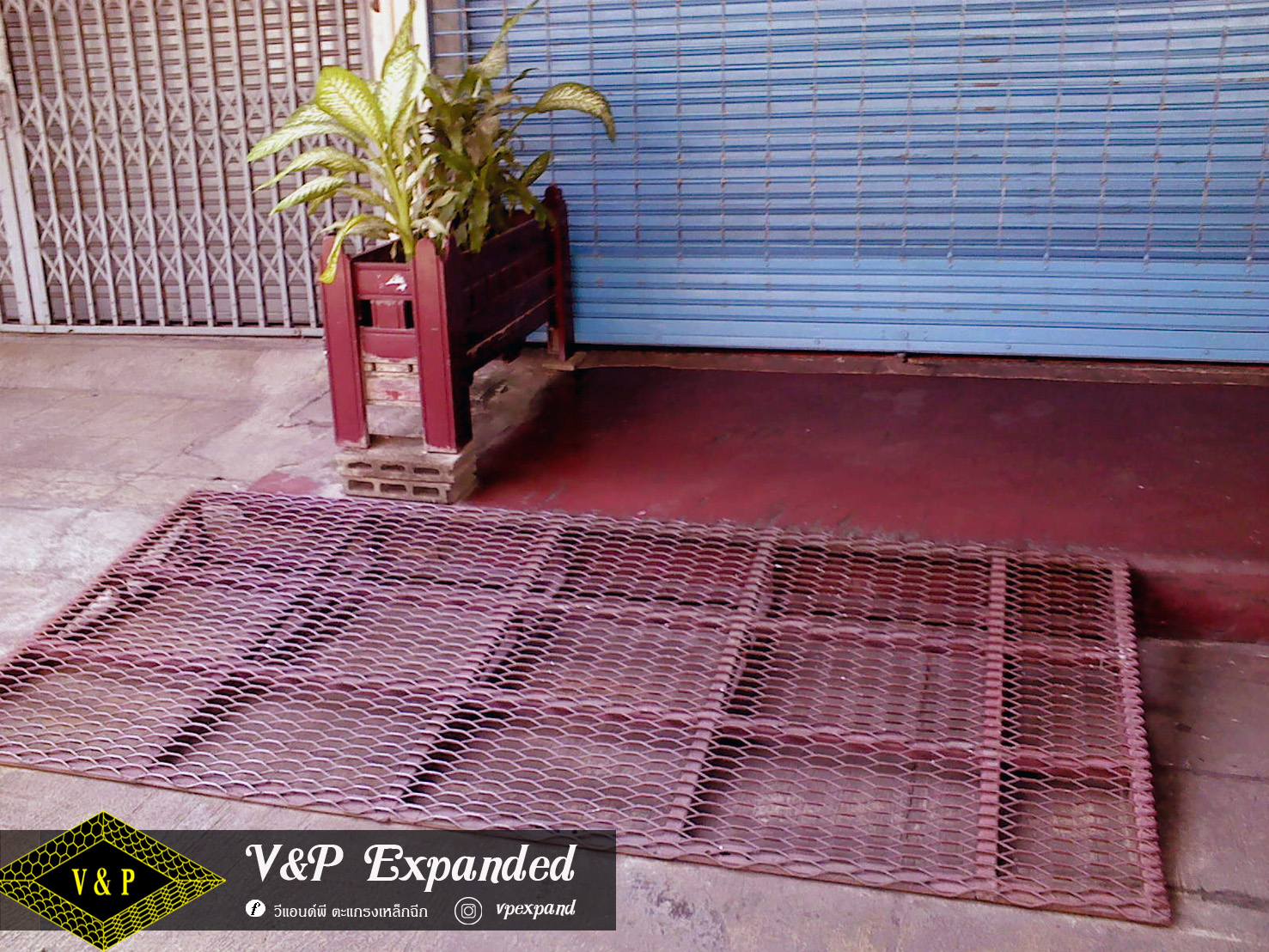

gratting expaned metal xg-22 expanded metal XG-12
