Expanded metal G Styles

expanded metal G series
Expanded metal G Styles





Specification

Weight

Short Way
Long Way

Per Sheet

of Dimond
of Dimond
Thickness
Width
4 feet x 8 feet

(SWD)
(LWD)
(T)
(W)
(LWM)(SWM)
G-1
23.0 mm
( 0.906 " )
122 mm
( 4.803 " )
3.2 mm
( 0.126 " )
7.0 mm
( 0.276 " )
43.2 kg.
G-2
23.0 mm
( 0.906 " )
122 mm
( 4.803 " )
4.5 mm
( 0.177 " )
7.0 mm
( 0.276 " )
61.0 kg.
G-5
9.0 mm
( 0.354 " )
44 mm
( 1.732 " )
1.6 mm
( 0.063 " )
1.6 mm
( 0.098 " )
20.8 kg.


Application:

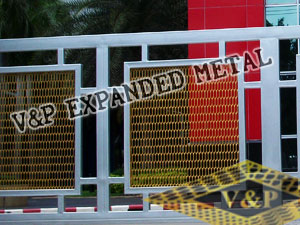

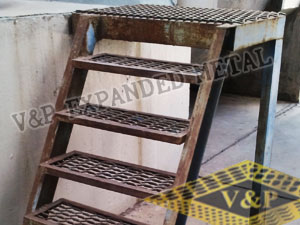

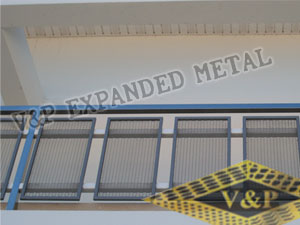

expanded metal G-1 expanded metal G-5
expanded metal G-1 expanded metal G-1
