Drawings of Mesh
divider

Raised (Conventional) Mesh Dimensions

expaned metal mesh dimensions

Raised (conventional) Mesh: strands are measured from knuckle to knuckle.

Flattened Mesh Dimensions

flattened mesh dimensions

Flattened Mesh: mesh which has been pressure rolled, resulting in strands which are in the same plane as the sheet.

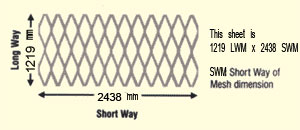

Sheet Measurements

Sheet Measurements

All sheet sizes are nominal, normally oversize. If exact sheared sizes are required this must be stated on the order.
All dimensions are in millimetres.
