Expanded metal S Styles

Expanded metal S Styles




Specification

Weight

Short Way
Long Way

Per Sheet

of Dimond
of Dimond
Thickness
Width
1240 mm x 2438 mm

(SWD)
(LWD)
(T)
(W)
(LWM)(SWM)
S-18
30 mm
( 1.181 " )
151 mm
( 5.945 " )
2.3 mm
( 0.091 " )
3.0 mm
( 0.118 " )
10.8 kg.




Specification

Weight

Short Way
Long Way

Per Sheet

of Dimond
of Dimond
Thickness
Width
4 feet x 8 feet

(SWD)
(LWD)
(T)
(W)
(LWM)(SWM)

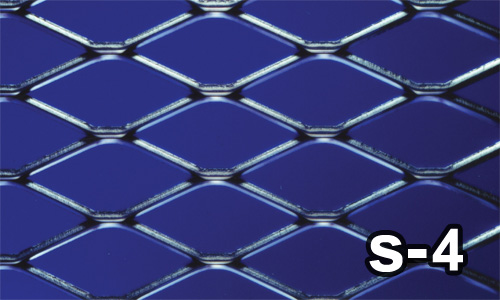

S-4
40 mm
( 1.575 " )
101.6 mm
( 4.000 " )
4.5 mm
( 0.177 " )
6.0 mm
( 0.236 " )
31.5 kg.
S-6
24 mm
( 0.945 " )
40.7 mm
( 1.602 " )
2.3 mm
( 0.091 " )
3.0 mm
( 0.118 " )
13.5 kg.

81.4 mm
( 3.205 " )

S-14
67 mm
( 2.638 " )
176 mm
( 6.929 " )
2.3 mm
( 0.091 " )
3.5 mm
( 0.138 " )
5.7 kg.
S-25
20 mm
( 0.787" )
64 mm
( 2.520 " )
2.3 mm
( 0.091 " )
4.0 mm
( 0.157 " )
21.5 kg.
S-30
22 mm
( 0.866 " )
52 mm
( 2.047 " )
4.5 mm
( 0.177 " )
6.0 mm
( 0.236 " )
21.7 kg.

58 mm
( 2.283" )
168 mm
( 6.614 " )

S-31
42 mm
( 1.654 " )
64 mm
( 2.520 " )
3.2 mm
( 0.126 " )
4.0 mm
( 0.157 " )
14.8 kg.

128 mm
( 5.039 " )

S-35
25 mm
( 0.984 " )
100 mm
( 3.937 " )
3.2 mm
( 0.126 " )
4.0 mm
( 0.157 " )
24.2 kg.
S-37
40 mm
( 1.575 " )
133 mm
( 5.236 " )
3.2 mm
( 0.126 " )
6.0 mm
( 0.236 " )
22.4 kg.
S-40
33 mm
( 1.299 " )
100 mm
( 3.937 " )
2.3 mm
( 0.091 " )
3.0 mm
( 0.118 " )
9.8 kg.



expanded metal S-6 expanded metal S-14 expanded metal S-18 expanded metal S-25
expanded metal S-30 expanded metal S-31 expanded metal S-35 expanded metal S-37
expanded metal S-40


Application:



expanded metal S-6 expanded metal S-6
expanded metal S-18 s18_04
